Gas Flow Meter

• Equipment Type

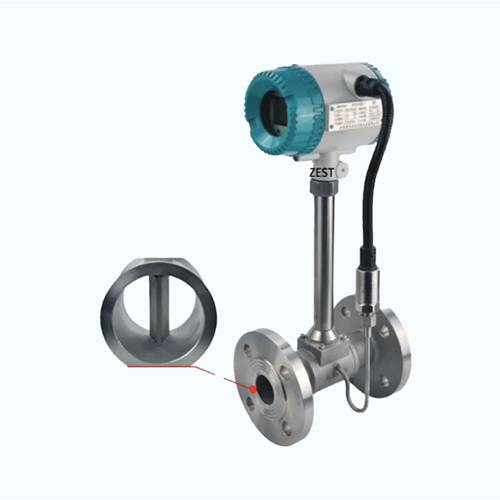

• Vortex Flow Meter

• Accuracy
• 1.0% of reading

• Application Media
• Liquid, Gas, Steam

• Capacity
• Depends on Pipe Diameter

• Color
• Silver

• Connecting Type
• Flanged/Wafer/Thread

• Connectivity Type
• Wired

• Current Range
• 4-20mA

• Cut Size
• DN15, DN25, DN40, etc.

• Diameter
• DN15 to DN300

• Dimension (L*W*H)
• Varies with Model

• Display Type
• Other, LCD Digital Display

• Flow Rate
• 0.5 to 30 m/s

• Frequency
• 1-3000 Hz

• Humidity %
• 95% RH (non-condensing)

• Language
• English

• Length
• Standard/Customizable

• Load Capacity
• Up to 10 bar

• Material
• Stainless Steel

• Measurement Range
• Depends on Model

• Measuring Units
• m3/h, L/h, kg/h, Nm3/h

• Mounting
• Flange/Insertion

• Operating Temperature
• -20C to +150C

• Output
• 4-20mA, Pulse, RS485

• Power Consumption
• <2 W

• Power Supply
• 24V DC/220V AC

• Pressure Range
• 0-1.6 MPa

• Process Connection
• Flange, Threaded, Wafer

• Protection
• IP65

• Range
• 0.5 to 30 m/s (fluid velocity)

• Resolution
• 0.001 m3/h

• Response Time
• <2 s

• Sensor Type
• Piezoelectric

• Signal Type
• Current, Pulse, Digital

• Stability
• 0.1% F.S/year

• Storage Temperature
• -40C to +80C

• Temperature Range
• -20C to +150C

• Accuracy
• 0.1% of reading

• Application Media
• Liquid, Gas, Slurry

• Capacity
• Up to 12,000 kg/h

• Color
• Silver / Blue

• Connecting Type
• Flanged / Threaded

• Connectivity Type
• Wired

• Current Range
• 4-20 mA

• Cut Size
• DN15 ~ DN200

• Diameter
• DN15~DN200

• Dimension (L*W*H)
• Depends on model, typically 300x150x250 mm

• Display Type
• Other, LCD Digital Display

• Flow Rate
• 0~12000 kg/h

• Frequency
• Precision up to 10,000 Hz

• Humidity %
• 95% RH

• Language
• English / Chinese

• Length
• Varies by model

• Load Capacity
• 100% Continuous

• Material
• Stainless Steel 316L

• Measurement Range
• 0~12000 kg/h

• Measuring Units
• kg/h, t/h, m3/h, L/h

• Mounting
• Flange / Threaded

• Operating Temperature
• -50C to +200C

• Output
• 4-20 mA / Pulse / RS485 / HART

• Power Consumption
• < 10W

• Power Supply
• 24V DC / 220V AC

• Pressure Range
• 0~32 MPa

• Process Connection
• Flange DIN/ANSI/JIS

• Protection
• IP65 / IP67 / IP68

• Range
• 0~12000 kg/h

• Resolution
• 0.0001 kg/h

• Response Time
• < 0.5s

• Sensor Type

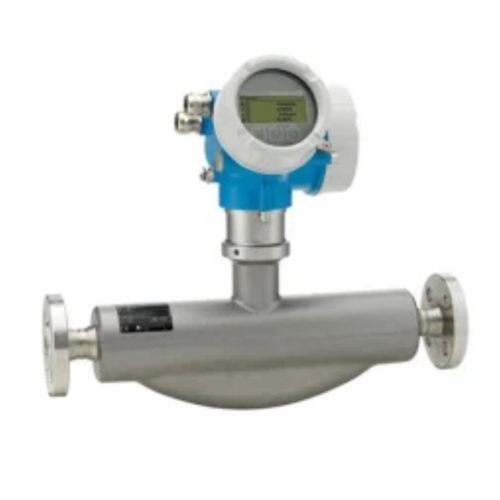

• Coriolis sensor

• Signal Type
• Current / Pulse / Communication

• Stability
• 0.05% F.S/year

• Storage Temperature
• -55C to +250C

• Temperature Range
• -50C to +200C

• Equipment Type

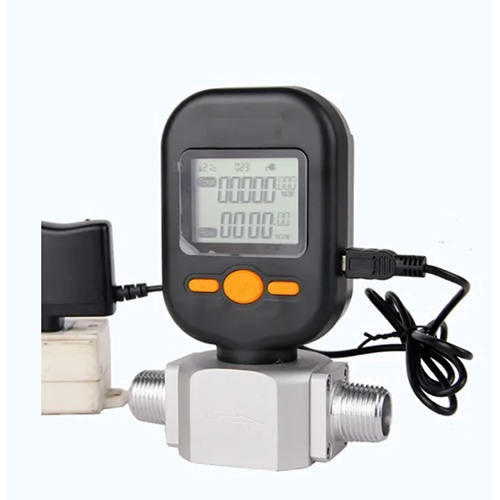

• Air Flow Meter

• Accuracy
• 2% of reading

• Application Media
• Air, Non-corrosive gases

• Capacity
• Customizable

• Color
• Blue/Grey

• Connecting Type
• Flange/Threaded

• Connectivity Type
• Wired

• Current Range
• 4-20mA

• Cut Size
• Configurable

• Diameter
• DN15-DN300

• Dimension (L*W*H)
• Varies per model

• Display Type
• Other, Digital LCD

• Flow Rate
• 0.3-70 m3/h

• Frequency
• 50/60Hz

• Humidity %
• 95% RH

• Language
• English

• Length
• Standard: 150mm

• Load Capacity
• Up to 10 Bar

• Material
• Aluminium Alloy

• Measurement Range
• 0.3-70 m3/h

• Measuring Units
• m3/h, l/min

• Mounting
• Inline

• Operating Temperature
• -10C to 60C

• Output
• 4-20mA, Pulse

• Power Consumption
• Low

• Power Supply
• 220V AC

• Pressure Range
• Up to 1.6MPa

• Process Connection
• Threaded, Flanged

• Protection
• IP65

• Range
• 0-100 m/s

• Resolution
• 0.01 m/s

• Response Time
• 1s

• Sensor Type
• Thermal Mass/ Vortex

• Signal Type
• Analog & Digital

• Stability
• High

• Storage Temperature
• -20C to 80C

• Temperature Range
• -10C to 60C
