Oil Meter

Explore our comprehensive range of Oil Meter, perfectly designed for accurate and efficient oil measurement in various industrial and commercial sectors. As experienced manufacturers, suppliers, and exporters with over 18 years of expertise, we present our exceptional product lineup including the popular Digital Oval Gear Flow Meter and the best-selling Diesel Metering System. Our oil meters boast superb accuracy, superior durability, and exceptional adaptability, making them the best choice for precise fluid monitoring. With their advanced digital technology, these meters provide a user-friendly experience and outstanding performance even in demanding conditions. Known for their reliability, minimal maintenance, and long service life, our oil meters are among the best-priced and most sought-after products available for sale. Whether you need these solutions for automation, fleet management, or industrial processing, our oil meters cater to all requirements, ensuring maximum efficiency and productivity with the best value. We proudly serve clients throughout All India, delivering a consistent supply and guaranteed satisfaction. Choose our oil meters for the ultimate combination of innovation, quality, and economy in oil measurement applications.

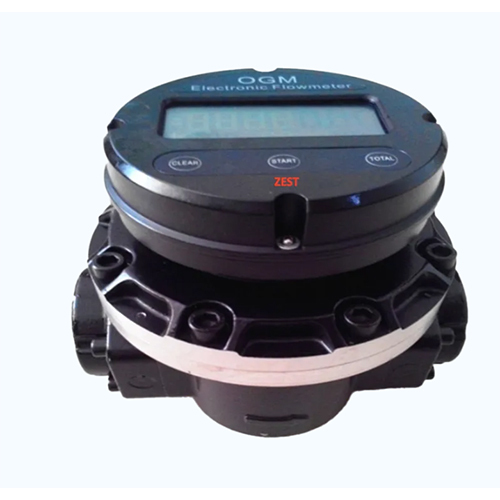

Digital Oval Gear Flow Meter

MOQ : 1 Piece

  • Accuracy
  • 0.5% of reading
  • Application Media
  • Water, Oil, Diesel, Fuel, and Other Viscous Liquids
  • Capacity
  • Max 10000 L/h
  • Color
  • Silver / Grey
  • Connecting Type
  • Threaded / Flanged
  • Connectivity Type
  • Wired
  • Current Range
  • 4-20 mA
  • Cut Size
  • DN15 / DN20 / DN25 / DN32 / DN40 / DN50 / DN65 / DN80 / DN100
  • Diameter
  • DN15 to DN100
  • Dimension (L*W*H)
  • 190 x 110 x 150 mm
  • Display Type
  • Other, Digital LCD Display
  • Flow Rate
  • 10 to 5000 L/h
  • Frequency
  • Pulse frequency proportional to flow
  • Humidity %
  • 95% RH
  • Language
  • English
  • Length
  • Standard as per pipe size
  • Load Capacity
  • Up to 10 Bar Pressure
  • Material
  • Aluminum Alloy / Stainless Steel
  • Measurement Range
  • 10 to 5000 L/h
  • Measuring Units
  • Liters, Gallons, Cubic Meters
  • Mounting
  • Inline
  • Operating Temperature
  • -20C to 80C
  • Output
  • Pulse, 4-20 mA
  • Power Consumption
  • <3W
  • Power Supply
  • 12-24 V DC
  • Pressure Range
  • 0-10 bar
  • Process Connection
  • BSP / NPT / Flanged
  • Protection
  • IP65
  • Range
  • 10 to 5000 L/h
  • Resolution
  • 0.01 L
  • Response Time
  • <0.5s
  • Sensor Type
  • Oval Gear
  • Signal Type
  • Current, Pulse
  • Stability
  • High stability with repeatable accuracy
  • Storage Temperature
  • -30C to 80C
  • Temperature Range
  • -20C to 80C

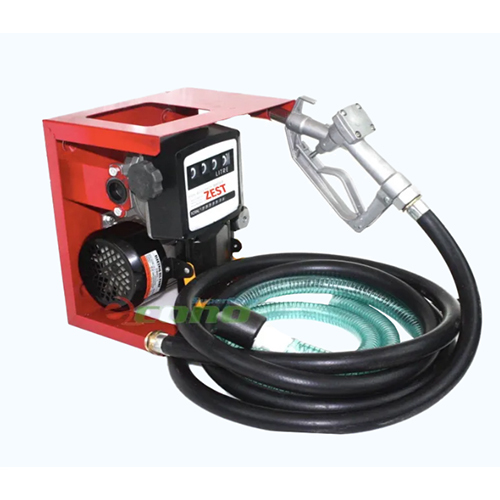

Diesel Metering System

MOQ : 1 Piece

  • Accuracy
  • 0.5% F.S.
  • Application Media
  • Diesel, Light Oils
  • Capacity
  • 10000 L
  • Color
  • Standard Grey/Blue
  • Connecting Type
  • Threaded/Flanged
  • Connectivity Type
  • RS485/Modbus (Optional)
  • Current Range
  • 4-20 mA
  • Cut Size
  • Customizable
  • Diameter
  • 1 inch, 2 inch (customizable)
  • Dimension (L*W*H)
  • Approx. 230x140x110 mm
  • Display Type
  • Other, Digital LCD / LED Display
  • Flow Rate
  • 5-200 L/min
  • Frequency
  • Up to 100 Hz
  • Humidity %
  • 95% RH
  • Language
  • English
  • Length
  • Standard 230 mm
  • Load Capacity
  • Up to 200 L/min
  • Material
  • Stainless Steel/Aluminium Body
  • Measurement Range
  • 5-200 L/min
  • Measuring Units
  • Liters (L), Gallons (G)
  • Mounting
  • Inline, Wall Mount
  • Operating Temperature
  • -10C to +60C
  • Output
  • Pulse/4-20 mA (Optional)
  • Power Consumption
  • 10 W (typical)
  • Power Supply
  • 230 V AC / 50 Hz
  • Pressure Range
  • 0~10 bar
  • Process Connection
  • BSP/NPT
  • Protection
  • IP65 Enclosure
  • Range
  • 0-99999 L
  • Resolution
  • 0.01 L
  • Response Time
  • < 1 sec
  • Sensor Type
  • Turbine/PD Type
  • Signal Type
  • Digital/Pulse
  • Stability
  • Long-term Drift <0.2%
  • Storage Temperature
  • -20C to +70C
  • Temperature Range
  • -10C to +60C
