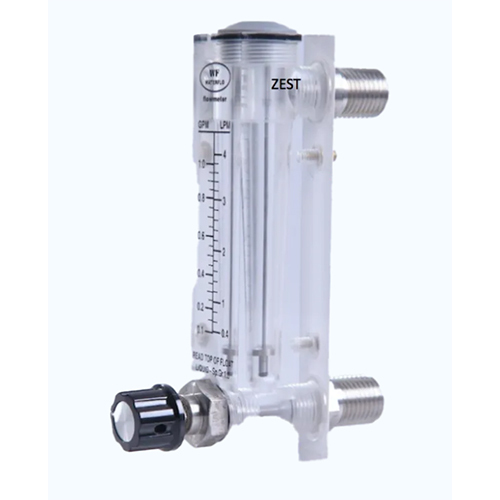

Variable Area Flow Meter

• Accuracy
• 2% of Full Scale

• Application Media
• Liquids & Gases

• Capacity
• As per Model (Flow Capacity)

• Color
• Transparent with Black Markings

• Connecting Type
• Threaded or Flanged

• Connectivity Type
• Mechanical Only

• Cut Size
• As per panel cutout; refer to installation guide

• Diameter
• 12 mm to 65 mm (as per process connection)

• Dimension (L*W*H)
• Varies by Model (e.g., 250 x 50 x 40 mm typical)

• Display Type
• Other, Direct Reading Scale

• Flow Rate
• As per Model Specifications

• Humidity %
• Up to 95% RH, Non-condensing

• Language
• English Scale Markings

• Length
• Variable (100 mm to 500 mm)

• Material
• Clear Acrylic Block

• Measurement Range
• Based on Model - Consult Datasheet

• Measuring Units
• LPH, LPM, or Custom (on scale)

• Mounting
• Panel Mounted

• Operating Temperature
• Up to 60C

• Output
• Visual Indication

• Power Consumption
• Nil

• Power Supply
• Not Required (Mechanical Device)

• Pressure Range
• Up to 10 kg/cm2

• Process Connection
• BSP (M/F), NPT, or Flanged Ends

• Protection
• Transparent Body, No electrical protection required

• Range
• 10 to 15,000 LPH (varies as per model)

• Resolution
• Fine Graduation Scale

• Response Time
• Immediate (with Fluid Flow)

• Sensor Type
• Float Type (Mechanical)

• Stability
• High (Acrylic Construction)

• Storage Temperature
• 0C to 60C

• Temperature Range
• 0C to 60C

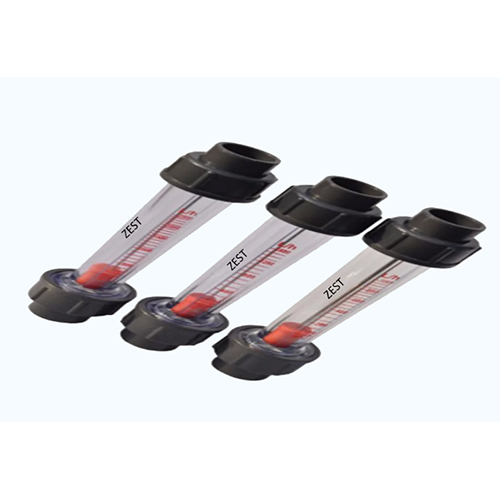

• Accuracy
• 2% of Full Scale

• Application Media
• Liquids & Gases

• Capacity
• As per Model Specification

• Color
• Transparent Body, Graduated Scale (Black/Red Markings)

• Connecting Type
• Threaded/Flanged/Female BSP/NPT

• Connectivity Type
• Mechanical Inline

• Cut Size
• Depends on Pipe Connection

• Diameter
• 15mm to 100mm (varies by process connection)

• Dimension (L*W*H)
• Varies with Model (Typically Compact Design)

• Display Type
• Other, Analog (Direct Read Scale)

• Flow Rate
• 0.5 to 5000 LPH (liquid); 2.5 to 30000 LPH (gas)

• Humidity %
• Upto 95% RH, Non-Condensing

• Language
• English (Scale Markings)

• Length
• Depends on Model (Typically 200-500 mm)

• Load Capacity
• Depends on Model (Refer to Manufacturers Chart)

• Material
• Borosilicate Glass Tube, SS 304/316, PTFE, Aluminum, or PVC (varies by model)

• Measurement Range
• 0.5 to 5000 LPH (Liquid); 2.5 to 30000 LPH (Gas)

• Measuring Units
• LPH, LPM, m3/hr, SCFM (Customizable)

• Mounting
• Inline, Vertical Upflow

• Operating Temperature
• Up to 100C (Higher ranges on request)

• Output
• None (Mechanical Indication)

• Power Consumption
• Nil

• Power Supply
• Not Required (Mechanical Operation)

• Pressure Range
• Up to 10 kg/cm2 (higher available for custom units)

• Process Connection
• Flanged/Threaded/BSP/NPT as per Model

• Protection
• IP65 (Weatherproof Housing)

• Range
• 0.5 to 5000 LPH (varies by model)

• Resolution
• Fine Graduation (Dependent on Range)

• Response Time
• Immediate (Mechanical Float Movement)

• Sensor Type
• Float/Variable Area

• Stability
• High Mechanical Stability

• Storage Temperature
• -20C to +60C

• Temperature Range
• 0C to 100C (Extended on Request)

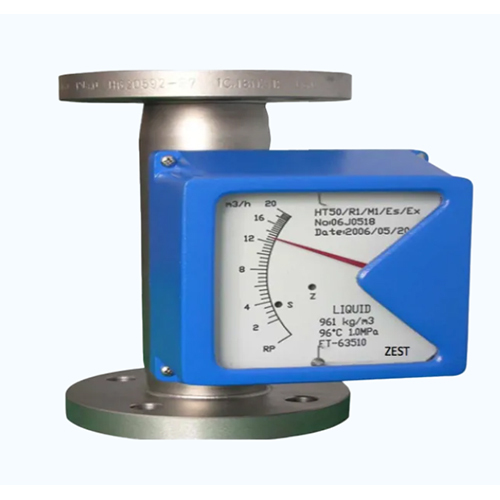

• Equipment Type
• Metal Tube Rotameter

• Accuracy
• 1.5% of F.S.

• Application Media
• Liquid, Gas, Air

• Capacity
• As per model specification

• Color
• Silver / Grey

• Connecting Type
• Flange / Threaded

• Connectivity Type
• Wired

• Current Range
• 4-20 mA

• Cut Size
• Custom as per requirement

• Diameter
• 15 mm to 100 mm

• Dimension (L*W*H)
• As per model selection

• Display Type
• Other, Analog/Digital

• Flow Rate
• 10 LPH - 60,000 LPH (water) / 0.1 Nm3/hr - 400 Nm3/hr (air)

• Frequency
• 50/60 Hz

• Humidity %
• 0-95% RH

• Language
• English

• Length
• As per piping standard

• Load Capacity
• Up to 60,000 LPH

• Material
• SS 304 / SS 316 / PTFE lined

• Measurement Range
• 10 LPH - 60,000 LPH (water), 0.1 Nm3/hr - 400 Nm3/hr (air)

• Measuring Units
• LPH, Nm3/hr, LPM, m3/hr

• Mounting
• Inline / Vertical

• Operating Temperature
• Up to 250C

• Output
• 4-20 mA / RS485 MODBUS (optional)

• Power Consumption
• <3 VA

• Power Supply
• 230 V AC / 24 V DC

• Pressure Range
• Up to 40 bar

• Process Connection
• Flanged / Threaded / Tri-clamp

• Protection
• IP65

• Range
• 10 LPH to 60,000 LPH (water) / 0.1 Nm3/hr to 400 Nm3/hr (air)

• Resolution
• 0.01

• Response Time
• <2 seconds

• Sensor Type
• Magnetic / Reed Switch

• Signal Type
• Analog / Digital

• Stability
• 0.5% over full range

• Storage Temperature
• -20C to 80C

• Temperature Range
• -20C to 250C
