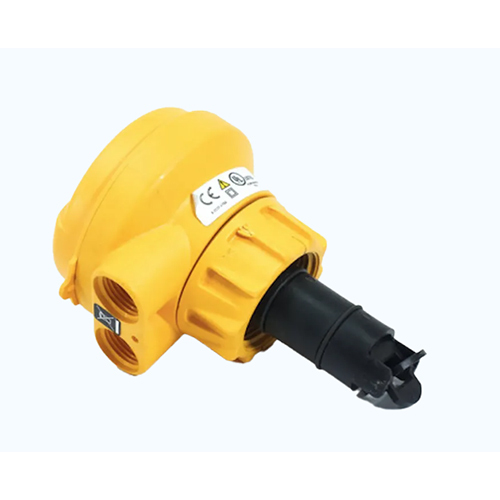

Paddle Wheel Flow Meter

Paddle Wheel Flow Meter Specification

Length
Based on model (typically 130 mm to 350 mm)

Measuring Units
L/min, m3/h, GPM

Temperature Range
0C to 60C (operating)

Cut Size
Depends on pipeline size

Sensor Type
Paddle Wheel

Measurement Range
0.3~6 m/s (velocity)

Capacity
Max flow capacity as per model

Equipment Type
Paddle Wheel Flow Meter

Protection
IP65

Dimension (L*W*H)
Varies according to model & pipe size

Flow Rate
0.5-1000 m3/h

Mounting
Inline / Insertion

Output
4-20mA, Pulse, RS485

Signal Type
Analog, Digital

Application Media
Liquids (water, chemicals)

Storage Temperature
-20C to 70C

Language
English

Frequency
Pulse output frequency proportional to flow

Connecting Type
Threaded / Flanged / Insertion

Humidity %
10-90% RH (non-condensing)

Color
Blue / Grey

Resolution
0.01 m3/h

Response Time
<1 sec

Diameter
DN15 to DN200 (15 mm to 200 mm)

Stability
High stability with minimal drift

Operating Temperature
0C to 60C

Pressure Range
Max 10 bar

Current Range
4-20 mA

Connectivity Type
Wired

Process Connection
Thread, Flange

Material
PVC / Polypropylene / Stainless Steel / PVDF

Power Supply
24V DC or 230V AC

Power Consumption
<5 W

Accuracy
1.0% of reading

Display Type
LCD digital display

Range
0.3 to 6 m/s (flow velocity)

Maintenance
Low maintenance design

Power Insulation
>10M (500V DC)

Sensor Material
PP, PVDF, SS options

Cable Entry
PG9/PG11 gland, M20 available

Display Features
Totalizer, Resettable total, Instantaneous flow

Maximum Pressure
10 bar (145 psi)

Calibration
Factory calibrated with calibration certificate

Repeatability
0.5%

Minimum Conductivity
20 S/cm

Installation Position
Horizontal/vertical with full pipe

Compliance
CE marked

Response Output
Adjustable pulse width

Ingress Protection
IP65/NEMA4X

Rotor Material
PVDF or SS316

Paddle Wheel Flow Meter Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Paddle Wheel Flow Meter About

Discover inestimable value with our Paddle Wheel Flow Meter, designed for flawless liquid measurement in industrial and commercial applications. Offered at an unbeatable price, this top-tier flow meter comes factory calibrated for first-rate accuracy and includes a calibration certificate. With a repeatability of 0.5% and a low-maintenance, immaculate design, you can expect exceptional reliability and substantial long-term savings. Take advantage of our exclusive promotion-featuring high ingress protection (IP65/NEMA4X), multiple output options, and versatile installation compatibility-all while enjoying maximum process efficiency and convenience.

Versatile Use & Competitive Edge of Paddle Wheel Flow Meter

The Paddle Wheel Flow Meter excels in measuring water and chemical flow for both general and specific industrial uses. Featuring high accuracy and a user-friendly LCD digital display, it stands out with its adjustable output signals and robust material choices. This reliable equipment works seamlessly in horizontal or vertical installations, offering unmatched versatility and competitive advantages over conventional meters.

Domestic Reach, Rapid Dispatch & Exclusive Offers

With a main domestic market focused in India, our product is always in stock and ready for shipment through FOB ports. We provide sample options for client valuation and assurance before committing. Leverage our ongoing offers to secure prompt delivery and enjoy peace of mind, knowing you have access to first-rate calibration and responsive after-sales support.

FAQ's of Paddle Wheel Flow Meter:

Q: How do I install the Paddle Wheel Flow Meter for optimal accuracy?

A: The Paddle Wheel Flow Meter can be installed in horizontal or vertical positions as long as the pipeline is full. Select the appropriate threaded, flanged, or insertion connection based on your pipeline size to ensure optimum accuracy and performance.

Q: What are the main benefits of factory calibration?

A: Factory calibration ensures each flow meter is precisely set for high measurement accuracy and comes with a certificate. This guarantees immediate, reliable results, reducing the need for frequent recalibration and providing confidence in process monitoring.

Q: Where can this flow meter be used?

A: This flow meter is ideal for measuring the flow of water and chemicals in industrial, commercial, and municipal applications. Its robust construction permits use in diverse environments with liquids requiring consistent and accurate flow monitoring.

Q: What is the process for obtaining a sample before purchase?

A: To request a sample, contact our sales team. We offer sample units for evaluation and testing so you can validate performance and suitability before placing a larger order.

Q: How does the device ensure low maintenance and longevity?

A: Designed with durable materials like PP, PVDF, and stainless steel, the flow meter features a minimal drift mechanism and high ingress protection. This ensures minimal maintenance and a long, dependable service life, even in challenging environments.
