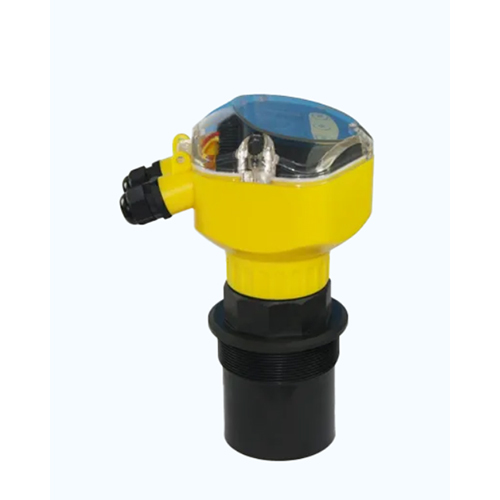

Ultrasonic Level Meter

Ultrasonic Level Meter Specification

Load Capacity
User configurable, standard up to 5A relay output

Measurement Range
0.3 - 10 m standard

Length
Cable length standard 5 m, extendable up to 50 m

Color
Blue & Black

Stability
< 0.2% per year

Measuring Units
Meters, Feet

Application Media
Liquid, water, industrial fluids, corrosive mediums

Temperature Range
-20C to +70C

Mounting
Threaded / Flange

Connectivity Type
Wired

Operating Temperature
-20C to +70C

Protection
IP65 / IP66 / IP68

Pressure Range
0.3 MPa

Capacity
Field adjustable

Resolution
1 mm

Diameter
Sensor head: 76 mm

Sensor Type
Contactless, Non-invasive

Response Time
< 1 s

Humidity %
95% RH (non-condensing)

Language
English

Cut Size
Customizable

Connecting Type
Cable Gland

Signal Type
Analog / Digital

Storage Temperature
-40C to +80C

Frequency
20-70 kHz

Process Connection
G2,

Output
4-20 mA, RS-485, Relay

Dimension (L*W*H)
120mm x 120mm x 205mm

Current Range
4-20 mA

Material
ABS / PVC / PTFE

Power Supply
24V DC / 220V AC

Power Consumption
< 2 W

Accuracy
0.25% of full scale

Display Type
LED / LCD digital display

Range
0.3 - 10 m (customizable up to 20 m)

Display Resolution
0.01 m

Power Indicator
LED power status

Enclosure Material
Polycarbonate / Glass-filled Nylon

Equipment Type
Ultrasonic Level Meter

Installation
Universal (vertical & horizontal mount)

Cable Entry
1 x M20x1.5

Transducer Type
Piezoelectric

Alarm Function
User programmable high/low alarm

Ultrasonic Level Meter Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Ultrasonic Level Meter About

Get the ultimate in liquid level monitoring with our first-class Ultrasonic Level Meter-now on clearance! Buy today and experience first-rate performance with user-configurable high/low alarm functions and precision measurement accuracy of 0.25% of full scale. Boasting a rugged polycarbonate or glass-filled nylon enclosure, universal mounting, and advanced piezoelectric transducer, it's perfect for industrial, water, or corrosive medium applications. The LED/LCD digital display offers crisp 0.01 m resolution, while output options include 4-20 mA, RS-485, and relay. Stock Ready-secure yours now!

Versatile Usage and Application Sites

Our Ultrasonic Level Meter is engineered for universal use, supporting both vertical and horizontal installation. Suitable for liquid, water, industrial fluids, and corrosive mediums, it excels across diverse environments. Simply mount via threaded or flange connection at tanks, reservoirs, or process lines, then connect via cable gland for instant operation. Enjoy seamless integration and precise level monitoring in any industrial site or utility infrastructure, making it a top choice for reliable, contactless liquid measurement.

Domestic and International Reach: Market Valuation & Samples

Experience high valuation and ready stock for fast shipping across India and key export markets. We cater to domestic sectors including manufacturing, water treatment, and chemical industries, and also deliver worldwide to ensure expansive coverage. Our sample policy offers flexible outlay options for qualified buyers, enabling first-hand evaluation before large-scale purchase. Engage with confidence-our supply chain ensures efficient service and prompt order fulfillment for all market needs.

FAQ's of Ultrasonic Level Meter:

Q: How does the ultrasonic level meter function in different media?

A: The ultrasonic level meter uses a piezoelectric transducer to emit sound waves, which reflect off liquid or industrial fluid surfaces. It provides precise, contactless measurement in liquids, water, and corrosive mediums without direct contact.

Q: What are the main installation steps for this equipment?

A: For installation, mount the unit vertically or horizontally using the threaded or flange connection. Connect the standard 5-meter cable (extendable up to 50 meters) via the cable gland, supply power (24V DC or 220V AC), and configure alarm and output settings. The LED/LCD display offers easy setup and monitoring.

Q: Where can this ultrasonic level meter be applied?

A: It is ideal for industrial plants, water treatment facilities, chemical storage tanks, and reservoirs. Its robust design and protection ratings allow reliable operation in challenging environments.

Q: What benefits does universal mounting offer to users?

A: Universal (vertical and horizontal) mounting enhances versatility, allowing the device to adapt to various site infrastructures and tank designs. This ensures seamless integration regardless of site conditions.

Q: When should the alarm function be programmed?

A: Program the high/low alarm during initial setup or system commissioning to match process safety and control requirements. Adjust alarms as operational needs change.

Q: What are the available output types for process integration?

A: The device supports analog (4-20 mA), digital (RS-485), and relay outputs, facilitating direct integration with SCADA, PLC, or remote monitoring systems for real-time data acquisition and process control.
