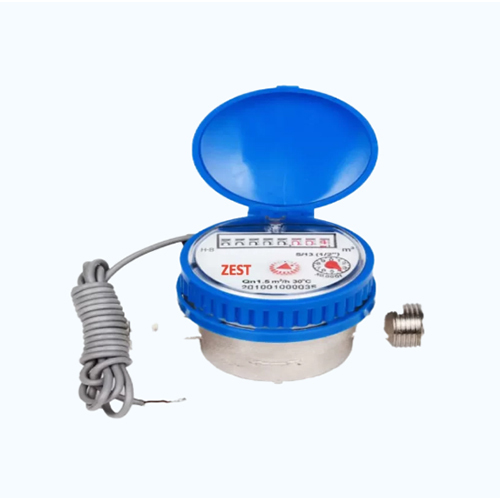

Water Meter Pulse Output

Water Meter Pulse Output Specification

Connecting Type
Threaded (BSP/NPT options)

Measuring Units
Cubic Meter (m3), Liter (L)

Length
Varies by diameter (e.g. 165 mm for 1)

Resolution
1 pulse per 1/10, 1/100, or 1/1000 m3 (configurable by model)

Capacity
Up to 99999 m3

Protection
IP68 (for pulse output enclosure)

Stability
High, mechanical drive with minimal drift

Pressure Range
1.6 MPa

Frequency
Pulse frequency depends on flow rate

Output
Reed switch pulse (dry contact)

Equipment Type
Water Meter with Pulse Output

Process Connection
Threaded male

Cut Size
1/2, 3/4, 1

Response Time
Instant (mechanical driven pulse)

Load Capacity
Max 24VDC, 0.1A (Pulse Switch)

Mounting
Horizontal/Vertical

Storage Temperature
-20C to 50C

Dimension (L*W*H)
Varies with nominal diameter (e.g. 165x75x105 mm for 1)

Language
English Markings on Dial

Flow Rate
0.03 - 10 m3/h

Humidity %
0-95% RH (non-condensing)

Diameter
15 mm, 20 mm, 25 mm (1/2, 3/4, 1)

Temperature Range
0C to 40C (operation)

Color
Blue/Brass

Connectivity Type
Wired Pulse Output

Application Media
Cold Water

Current Range
N/A (passive pulse switch)

Measurement Range
0.03 to 10 m3/h depending on model

Signal Type
Passive pulse

Sensor Type
Mechanical Turbine with Magnet Pulse

Operating Temperature
0C to 40C

Material
Brass body, Engineering plastic cover

Power Supply
No external power required (mechanical driven with pulse output)

Power Consumption
Negligible (passive pulse switching)

Accuracy
2% in normal flow rate range

Display Type
Analog Dial Register with Pulse Output

Range
0.03 ~ 10 m3/h (varies by diameter)

Seal Type
Double O-ring for water tightness

Application
Residential, commercial, industrial water metering

Pulse Output Type
Reed switch (SPST, dry contact)

Pulse Cable Length
Standard 1 meter (extendable to 10 meters on request)

Installation Position
Horizontal recommended; vertical possible

Life Expectancy
More than 5 years in normal operation

Max Register Reading
99999 m3

OEM Availability
Yes

Packaging
Individual box, export carton

Pulse Contact Resistance
<500 mOhm (initial)

Water Meter Pulse Output Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

Water Meter Pulse Output About

Discover the blue-ribbon Water Meter Pulse Output-an unmatchable solution trusted by homes, businesses, and industries across India. With splendid, high-stability mechanical drive and a rugged brass build, this best-seller ensures precise readings for years. Enjoy a seamless experience with IP68 protection, double O-ring sealing, and adaptable installation for horizontal or vertical setups. No external power required! Grab yours now and experience effortless water metering with configurable pulse output, multiple diameter options, and leading OEM availability. Shop now for a reliable, export-grade solution!

Versatile Applications & Trusted Users

The Water Meter Pulse Output serves a wide spectrum of users-from residential apartments and commercial buildings to expansive industrial complexes. Its durable construction and remarkable accuracy make it a preferred choice for diverse application surfaces, including water distribution networks and submetering. Other splendid features such as a threaded (BSP/NPT) connection, analog dial register, and easy mounting ensure an unmatchable measuring experience for professionals and facility managers alike.

Delivery, Export Markets & Supply Ability

On placing your order, expect prompt arrival and careful handover as individual boxes are shipped in sturdy export cartons. Our primary export markets include India and various international regions. We guarantee a strong supply ability, capable of meeting high-volume requirements swiftly and efficiently. With timely delivery as our promise, you can count on us for reliable, seamless service every step of the way.

FAQ's of Water Meter Pulse Output:

Q: How can I extend the pulse cable length beyond the standard 1 meter?

A: You can request an extension of the pulse cable length up to 10 meters when placing your order, ensuring flexible setup for different installation needs.

Q: What is the recommended installation position for the Water Meter Pulse Output?

A: Horizontal installation is recommended for optimal performance, but vertical mounting is also possible depending on your space requirements.

Q: What types of applications benefit from using this water meter?

A: This water meter is ideal for residential, commercial, and industrial applications, providing high-accuracy measurement and reliable pulse outputs for monitoring water usage.

Q: How does the pulse output work and what are its benefits?

A: The meter uses a reed switch (dry contact) for pulse output, enabling remote monitoring and effortless integration with building management or metering systems without the need for an external power supply.

Q: Where is the Water Meter Pulse Output manufactured and supplied from?

A: It is manufactured and supplied from India, with OEM availability for custom branding or specific project requirements.

Q: What is the expected delivery timeline after placing an order?

A: Products are typically processed quickly, with delivery times varying based on your location and order size. Our efficient handover and shipping system ensure you receive your order promptly.
